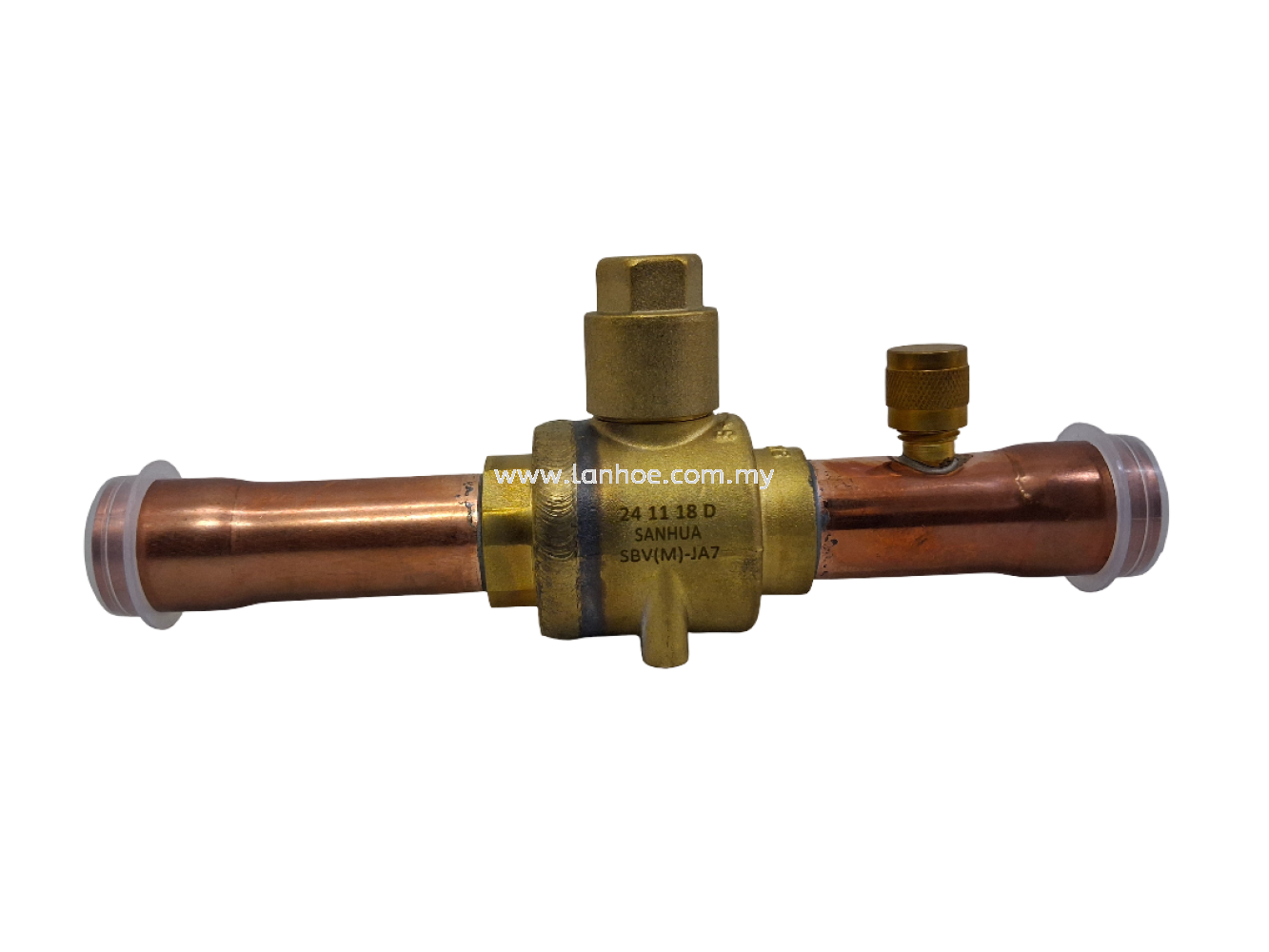

SANHUA SBV(M)-JA7YHSY-1-SA BALL VALVE 7/8'' WITH ACCESS VALVE (SBV-13028)
Category: Stock Clearance
Specifications
Details
The Sanhua SBV(M)-JA7YHSY-1-SA (part number SBV-13028) is a highly reliable bi-directional ball valve designed for commercial air conditioning and refrigeration applications. It features a 7/8-inch ODF solder connection and utilizes a full-port internal design to ensure maximum refrigerant flow with virtually no pressure drop. A key advantage of this specific model is its integrated Schrader access valve, which provides technicians with a convenient, built-in port for system charging, evacuation, and pressure diagnostics without the need to install separate fittings. Constructed with a robust brass body and a laser-welded hermetic structure to completely prevent leaks, the valve uses a simple quarter-turn mechanism for quick and precise flow isolation when servicing system components. It is rated for a maximum operating pressure of 45 bar (approximately 650 PSI) and is fully compatible with a wide range of common HCFC, HFC, and HFO refrigerants.
